The Belle TL


Vintage voiced twang.

Available on backorder

Pickup Position

Product price: $80.00
Order total:
SKU: CP- BELLE-TL Categories: , ,

The Belle series of single coils is Corrigan Pickups take on the classic designs, with modern build quality and reliability without sacrificing the sounds we all love.

The Belle TL set comprises of a matched AlNiCo 5 loaded pickups wound with poly coated magnet wire. Unlike the Plain Enamel or Heavy Formvar wire that is traditionally used, the poly coated wire yields a higher inductance value per pickup giving the player a louder pickup without sacrificing low end definition and clarity. This is also thanks to the heavily scatter hand wound coils.

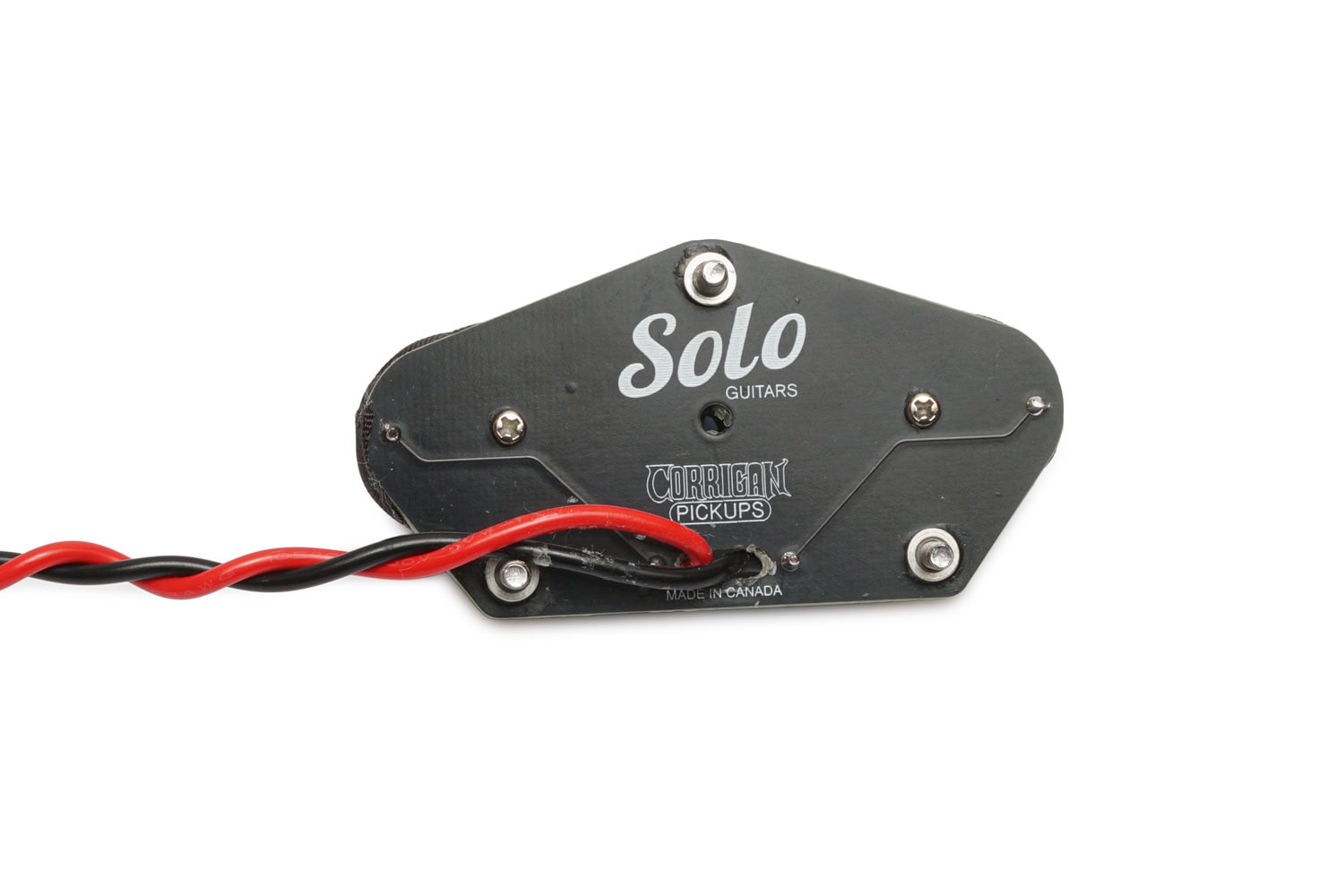

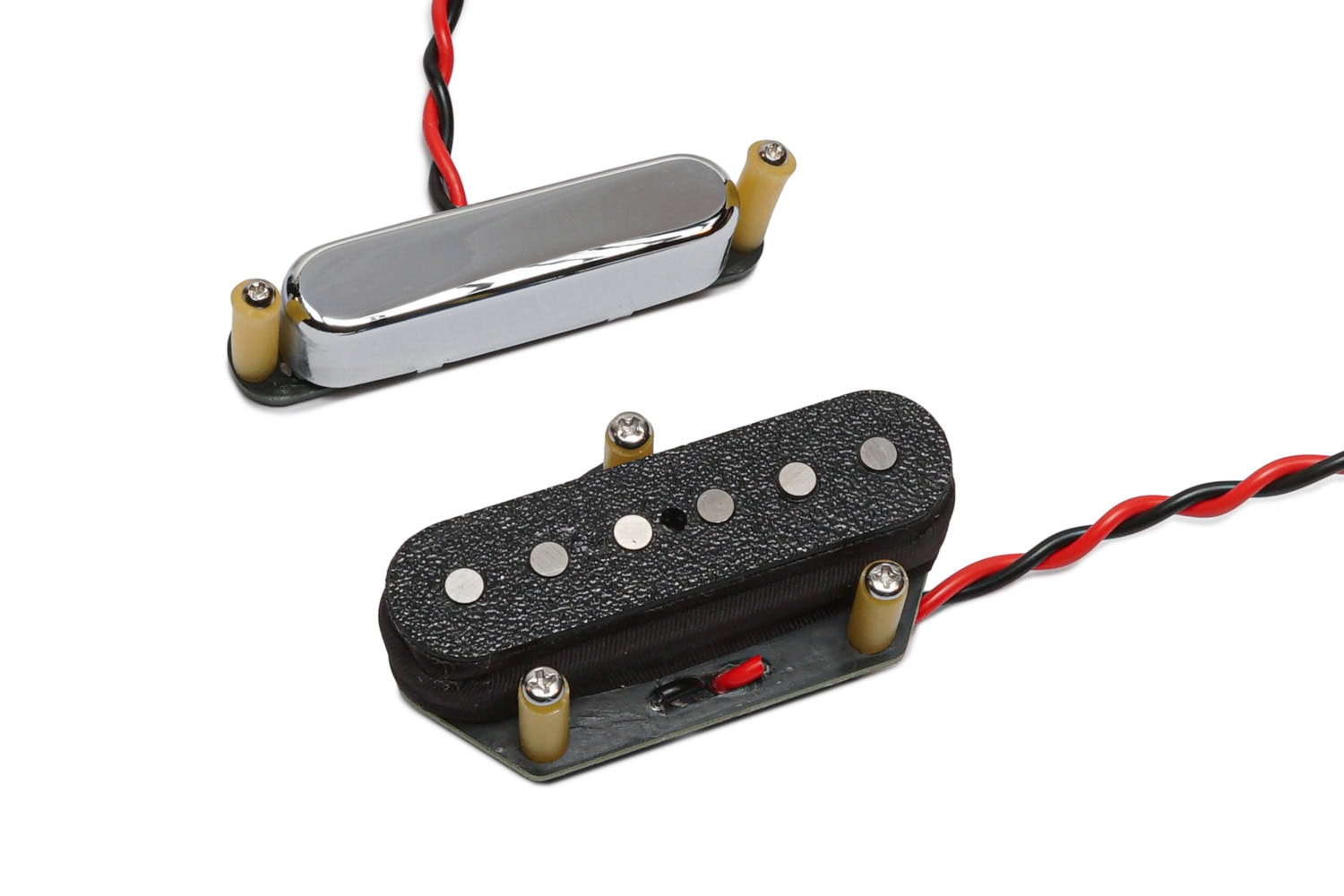

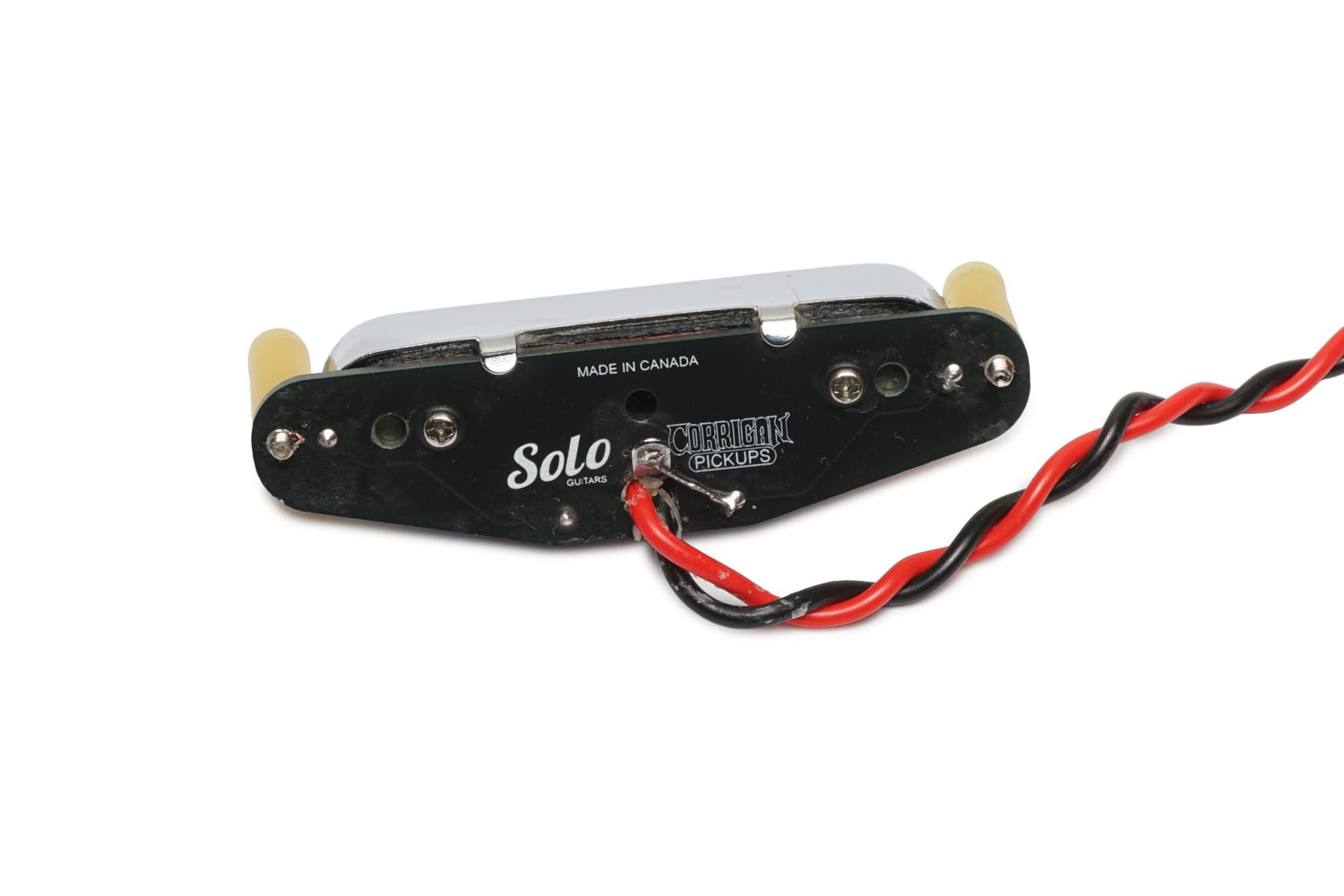

The bridge pickup has a copper base plate and the neck pickup uses a traditional chrome plated nickel cover.

Both pickups are wax potted in a custom blend of paraffin and beeswax.


  • Bridge Pickup: 8 Kohm resistance
  • Neck Pickup: 6 Kohm resistance
  • AlNiCo 5 Magnets
  • Poly Coated magnet wire
  • Fibreboard bobbins
  • Copper baseplate (bridge only)
  • Two conductor wiring
  • RWRP
  • Wax Potted
  • Handwound in Canada
